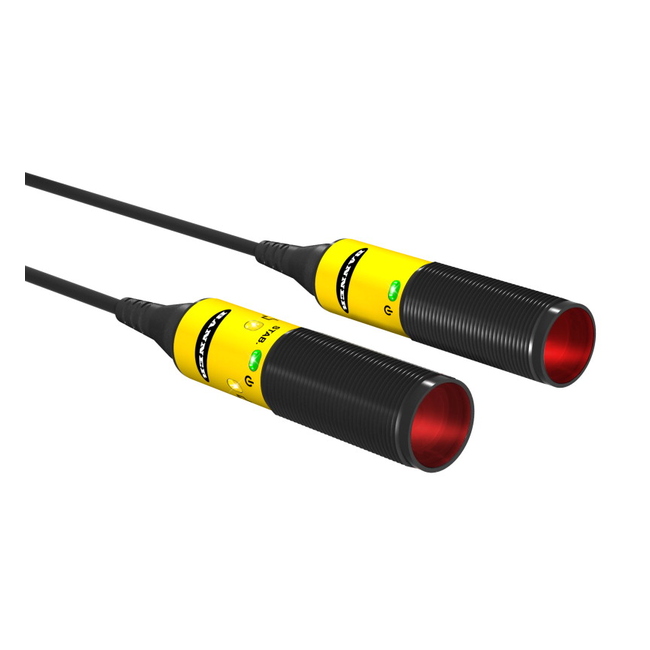

S18-2VNRS-Q8 BANNER ⍾ 86568

S18-2 Series Cost Effective Plastic 18 mm Barrel; S18-2 Series: Receiver with pot Range: variable to 25 m; Input: 10-30 V dc Outputs: complementary NPNConnection: Euro M12 4-pin Integral Connector; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 25000; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 1.5; Repeatability (µs) : 170; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Receiver; Feature: Ecolab Certified : Yes; Feature: Quick Disconnect : Yes

Tipo

S18-2

Material de la lente

Acrylic

Haz sensor

Visible Red LED

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

DC

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP67
