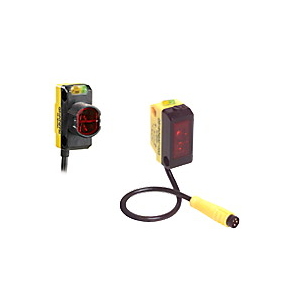

QS18VP6FF50 BANNER ⍾ 71640

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Series: Fixed-Field Range: 50 mm; Input: 10-30V dc Output: Complementary Solid State PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 50; Outputs : PNP; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.85; Sensing Beam Wavelength : 630; Repeatability (µs) : 160; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 18

Tipo

QS18

Material de la lente

Acrylic

Haz sensor

Visible Red LED

Conexión

Cable

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

DC

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP67
