Q25RW3REQ1 BANNER ⍾ 37099

Este producto ha sido marcado como descontinuado. Pregunte por disponibilidad o reemplazo.

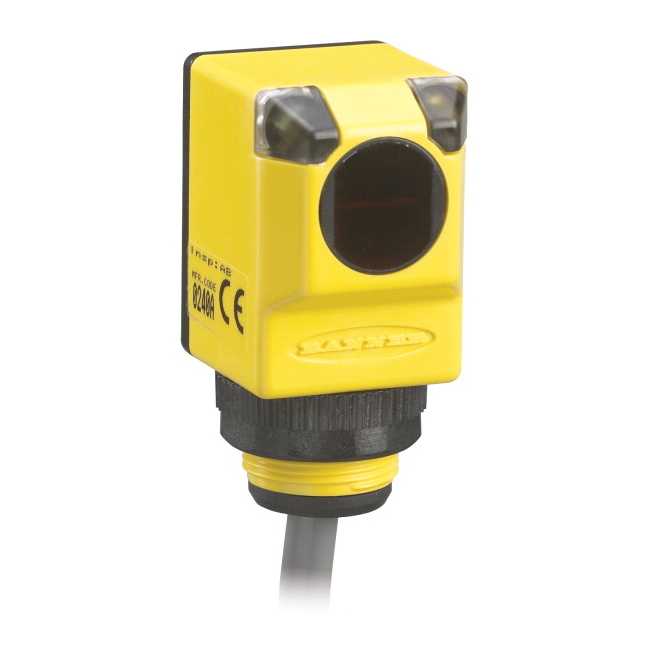

Q25 Series Right-Angle Base-Mount Rectangle Sensor; EZ-BEAM Q25 Series Right-Angle Receiver/Emitter Range: 20 m; Input: 20-250 V ac Output: Receiver: Dark Operate Micro 4-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter/Receiver Pair; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 20000; Outputs : Solid-State AC Switch; Quick Disconnect Type : 1/2 in. (Micro); Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Repeatability (µs) : 2000; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Pair; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes

Tipo

Q25

Material de la lente

Polycarbonate

Haz sensor

Infrared LED

Conexión

Integral QD

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

AC

Fuente de alimentación

20-250 V ac

Indicador

LEDs

Grado de protección

IP69
