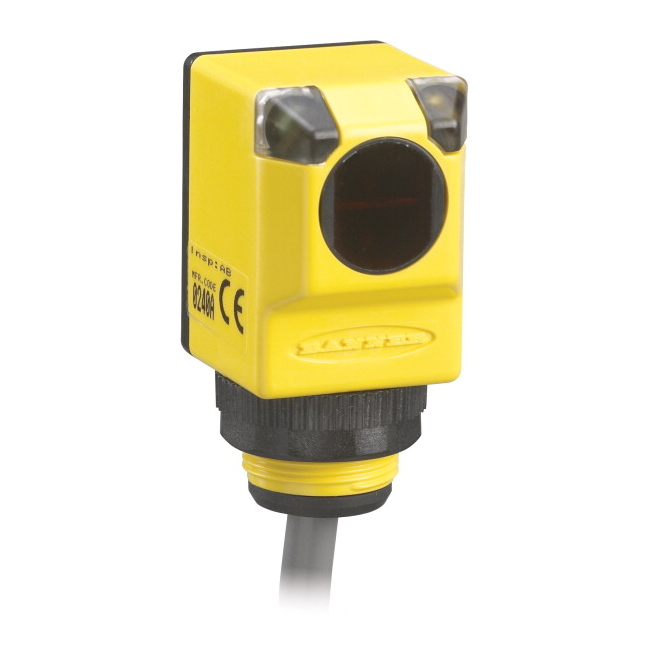

Q253E BANNER ⍾ 31966

Q25 Series Right-Angle Base-Mount Rectangle Sensor; EZ-BEAM Q25 Series: Emitter Range: 20 m; Input: 20-250V ac Output: Not applicable - No outputs 2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 20000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Repeatability (µs) : 2000; Number of Pins : 2; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes

Tipo

Q25

Material de la lente

Polycarbonate

Haz sensor

Infrared LED

Conexión

Cable

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

AC

Fuente de alimentación

20-250 V ac

Indicador

LEDs

Grado de protección

IP69
