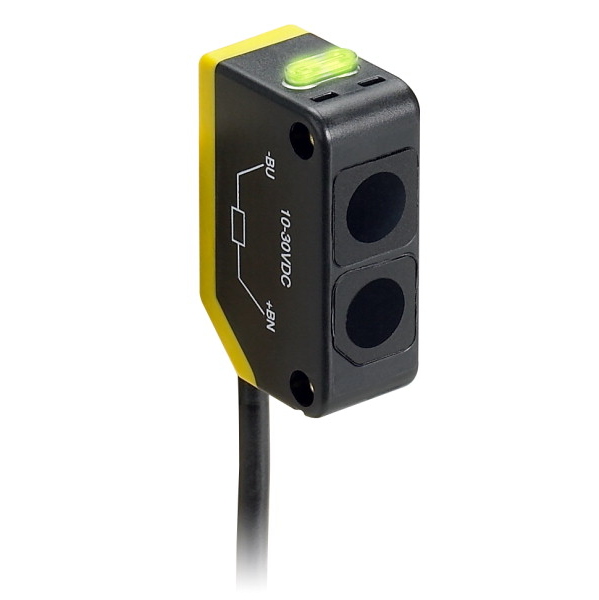

Q20PFF150Q7 BANNER ⍾ 78156
Q20 Series Industry Standard Global Housing; WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm; Input 10-30 V dc Output: Complementery Solid State PNPPico 4-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 150; Outputs : PNP; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.8; Sensing Beam Wavelength : 655; Repeatability (µs) : 155; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Feature: Quick Disconnect : Yes
- Lens material
- Acrylic
- Sensing beam
- Visible Red LED
- Connection
- Integral QD
- Typical response time
- 100 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
