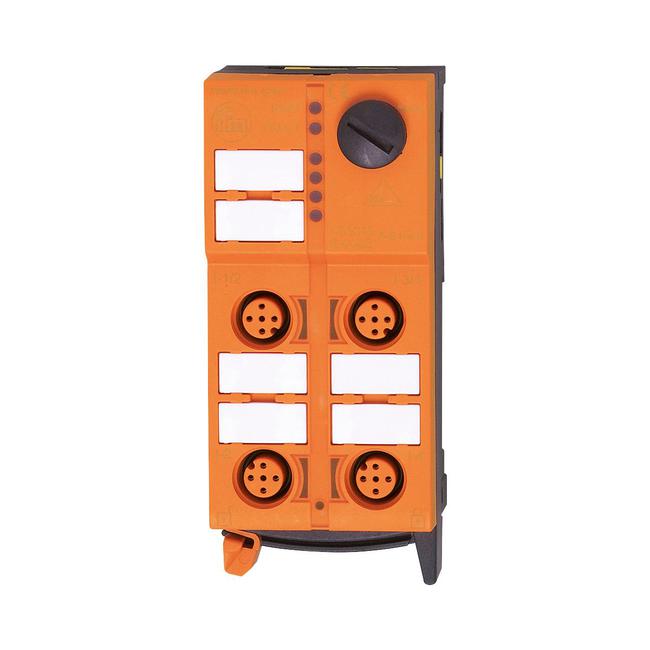

AC5214 ifm ⍾ ClassicL 2DO-Y 2DI-Y IP67

AS-Interface ClassicLine module with quick mounting technology; Max. current consumption from AS-i [mA] : 150; Max. current load total [A] : 2; Integrated watchdog : yes; Number of digital inputs : 2; Input circuit of digital inputs : PNP; Sensor supply of the inputs : AS-i; Voltage supply [V] : 18...30; (via flat cable); Max. total current rating of inputs [mA] : 100; Input current High [mA] : 6...10; Input current Low [mA] : 0...2; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Number of digital outputs : 2; Circuit : PNP; Voltage range DC [V] : 15...30; (to PELV; via flat cable); Max. current load per output [mA] : 1000; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)); Short-circuit proof : yes; Electrically separated : yes; Actuator supply outputs : AUX; Ambient temperature [°C] : -25...70; Type of mounting : AS-i flat cables directly connectable; Materials : PA; piercing contacts: CuSn6 nickel-plated and tin-plated; quick mounting technology for AS-i flat cable: ; three orientations possible; Items supplied : lower part; Accessories (optional) : Protective cap: M12, E73004

Tipo

Gama completa

Conexión

Connector: M12

Número de entradas/salidas

Number of digital inputs: 2; Number of digital outputs: 2

Consumo actual

< 750 mA

Suministro de voltaje

18...30; (via flat cable) V

Mostrar

operation: LED, green | errors: LED, red | function: LED, yellow

Grado de protección

IP 67

Peso

194 g

Dimensiones

45 x 82.5 x 33 mm
