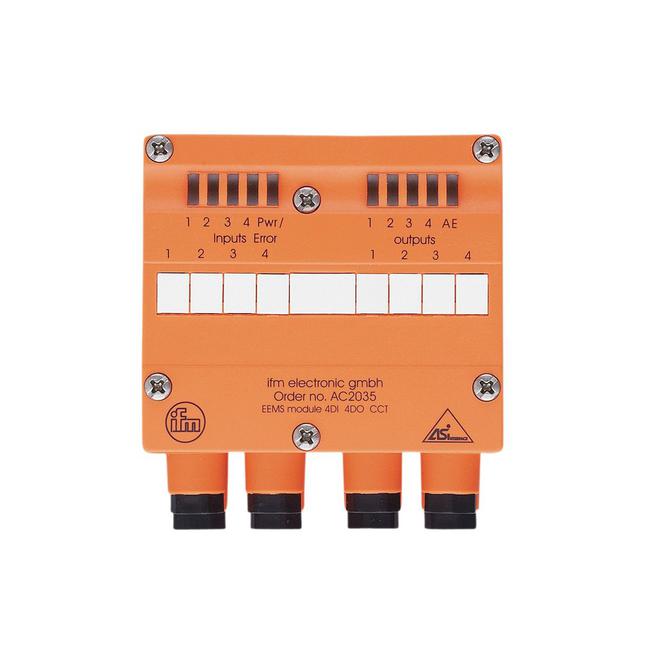

AC2035 ifm ⍾ EEMS/Module/4DI/4DO/T/CCT

AS-Interface universal module; Max. current consumption from AS-i [mA] : 230; Max. current load total [A] : 4; Integrated watchdog : yes; Number of digital inputs : 4; Input circuit of digital inputs : PNP; Sensor supply of the inputs : AS-i; Voltage supply [V] : 20...30; Max. total current rating of inputs [mA] : 200; Input current High [mA] : > 5; Input current Low [mA] : < 3; Min. switching level high signal [V] : 10; Digital inputs protected against short circuits : yes; Number of digital outputs : 4; Circuit : PNP; Voltage range DC [V] : 24; (to PELV); Max. current load per output [mA] : 1000; (DC-12 / DC-13); Short-circuit proof : yes; Electrically separated : yes; Actuator supply outputs : AUX; Ambient temperature [°C] : -25...60; Type of mounting : AS-i interface to FC-E or SC lower parts; Materials : PA 6-GF30; stainless steel (1.4305 / 303); cage clamps:

Tipo

Gama completa

Conexión

terminals: ...2.5 mm²

Número de entradas/salidas

Number of digital inputs: 4; Number of digital outputs: 4

Consumo actual

< 500; (AUX / AS-i 1) mA

Suministro de voltaje

20...30 V

Mostrar

operation: LED, green | function: LED, yellow

Grado de protección

IP 65

Peso

317 g

Dimensiones

45 x 80 x 46 mm
