7ML5651-1DB00-0CB0 SIEMENS ⍾ 7ML56511DB000CB0

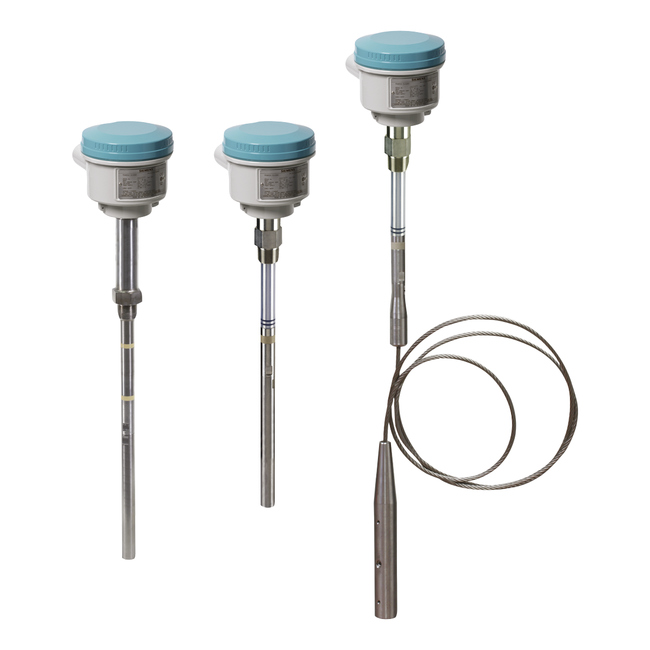

Pointek CLS300 - Standard - Cable Version with Threaded or Flanged process connection: Inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. Process Connection: R 1 1/2" (BSPT), EN 10226/PT (JIS-T), JIS B 0203 Probe Length: (Lengths from flange face) Extended cable, 6000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: Bare 316L stainless steel cable, PEEK isolators and 316L stainless steel cable weight Approvals: Dust Ignition Proof with IS Probe: CE, C-TICK, ATEX II 1/2 D T100 C Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged)

Tipo

Capacitance transmitters

Identificación de producto alternativa

7ML56511DB000CB0

Número de arancel aduanero

90261029

Origen esperado

DE

Peso

2.000 kg
