7ML5440-1HA00-1AA2 SIEMENS ⍾ 7ML54401HA001AA2

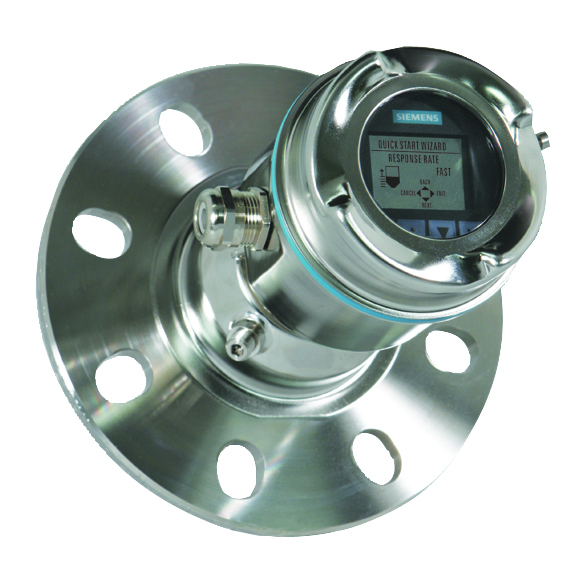

SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monitoring of solids and liquids to a range of 100 m (329ft) Order hand programmer separately! Measurement and process temperature range: 100m (329 ft) max range, -40 C degrees to +200 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, painted aluminum, with integral aimer Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT . Label: Sitrans LR560 Pressure Rating: 3 bar g (40 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: General purpose, FM, CSA US/C, Industry Canada, FCC, CE, R&TTE, C-TICK Local display interface: With LDI (local display interface)

Tipo

Radar transmitters

Identificación de producto alternativa

7ML54401HA001AA2

Número de arancel aduanero

90261029

Origen esperado

CA

Peso

6.000 kg
