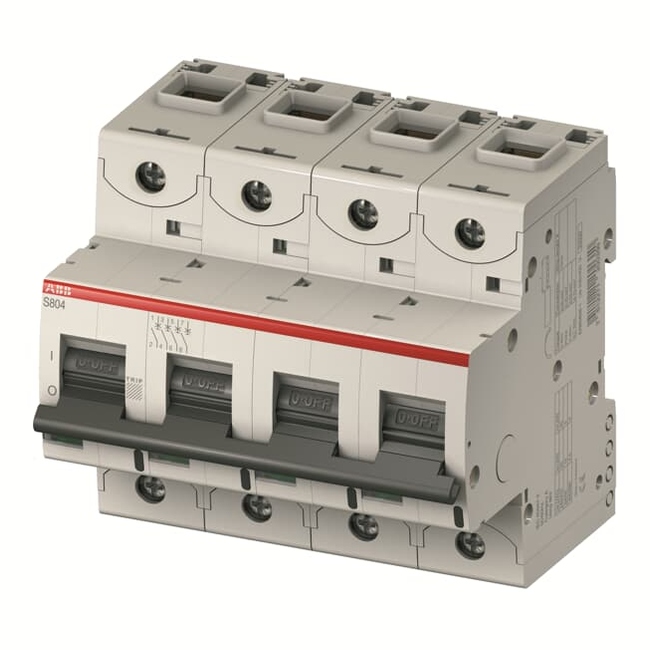

2CCS894001R0505 ABB ⍾ S804N-B50

The S804N-B50 is a 4-pole High Performance Circuit breaker with B-characteristic, with cage terminal and a rated current of 50 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804N-B50 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804N-B50 more comfortable. Due to the fast arc extinction of S804N-B50 your application will be secured.

Tipo

High Performance Circuit Breakers HPCBs

Descripción

S804N-B50 High Performance MCB

Número de arancel aduanero

85362020

Peso

980 g

Dimensiones

(WxHxD/L) 106 mm x 95 mm x 82.5 mm

EAN

7612271204235
