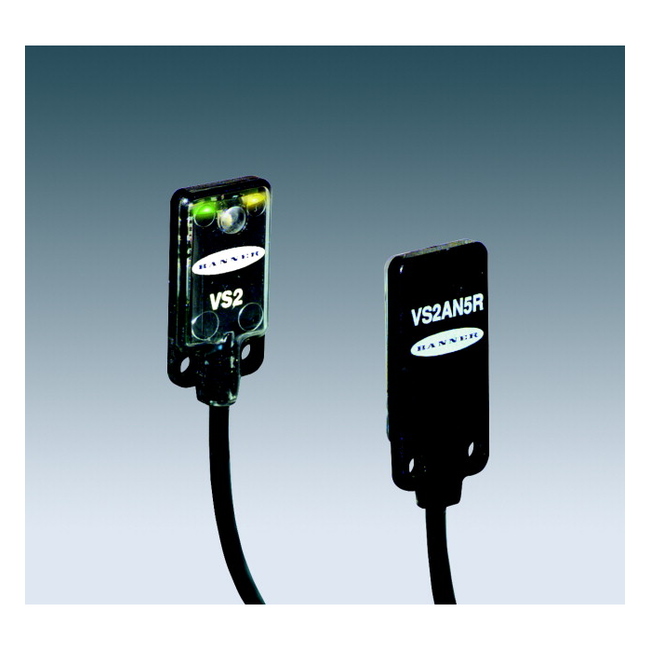

VS25EQ BANNER ⍾ 69449

Ultradünner Miniatursensor der Bauform VS2; VS2 Series: Emitter Range: 1.2 m max; Input: 12-24V dc Not applicable - No outputs Pico 3-pin 6 ft Pigtail; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Opposed; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 3000; Outputs : N/A; Power Supply/Supply Voltage : 10-30 V dc; Connection : Pigtail QD; Quick Disconnect Type : M8 (Pico); Operation : N/A; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Sensing Beam Wavelength : 940; Delay at Power-up (ms) : 100; Repeatability (µs) : 100; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 80% @ 50°C; Lens Material : MABS; Adjustments : N/A; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Quick Disconnect : Yes

Typ

VS2

Linsenmaterial

MABS

Sensorstrahl

Infrared LED

Connection

Pigtail QD

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
