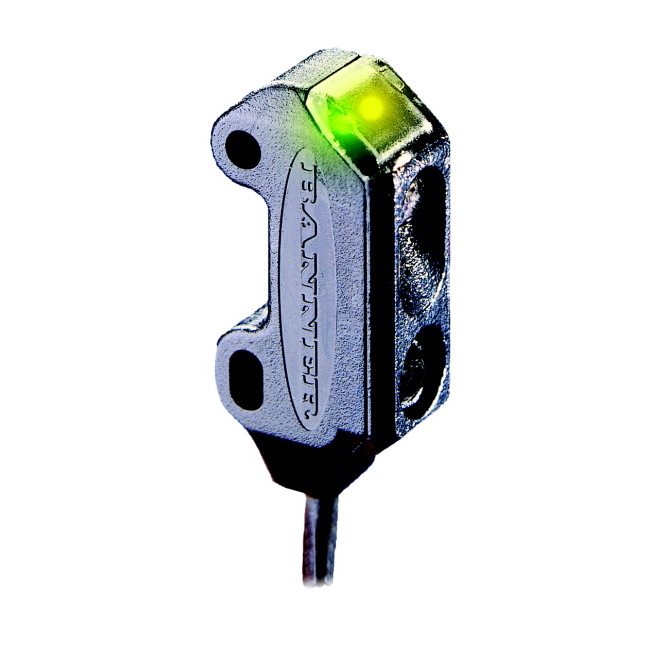

VS1RN5C10 BANNER ⍾ 55294

Kompakter Mini-Winkellichttaster der Bauform VS1; VS1 Series: Infrared Convergent Focal Point: 10 mm; Input: 12-24V dc Output: Dark Operate - NPN 2 m (6.5 ft) Cable; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Sensing Beam Wavelength : 865; Delay at Power-up (ms) : N/A; Repeatability (µs) : 250; Number of Pins : 3; NEMA Rating : NEMA 3; IP Rating : IP54; Max Op. Relative Humidity [%] : 80% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Barrel Diameter (mm) : N/A; Indicator : LEDs

Typ

VS1

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP54
