T8RN6R BANNER ⍾ 66665

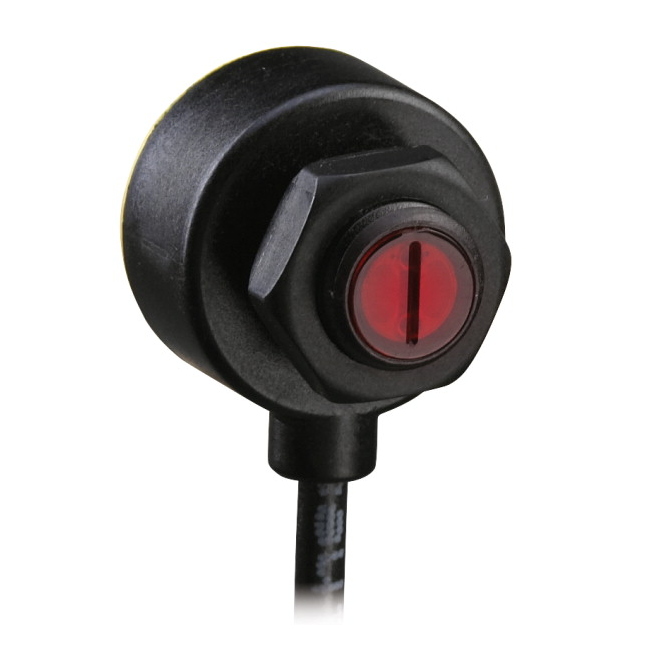

Kompakter Sensor mit Gewinderohr-Montage: Bauform T8; T8 Series: Opposed Mode Range: 2000 mm; Input: 10-30V dc Output: NPN Dark Operate 2 m (6.5 ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Delay at Power-up (ms) : 100; Repeatability (µs) : 100; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Opposed Mode Emitter/Receiver : Receiver

Typ

T8

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
