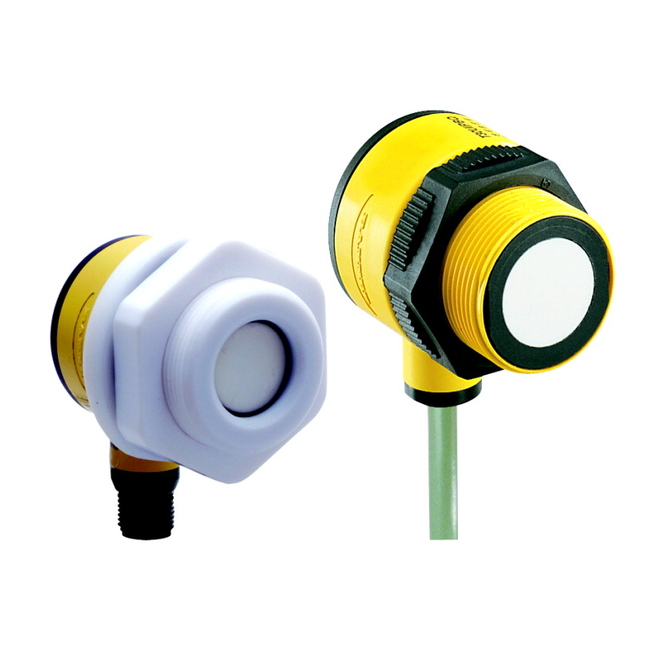

T30UDNA BANNER ⍾ 55547

Ultraschallsensor der Bauform T30U mit 2 m Reichweite zur Pumpenregelung; Dual-Discrete T30U Series: Proximity Mode Range: 150 mm to 1 m; Input: 12-24V dc Outputs: Two Discrete NPN 2 m (6.5 ft) Cable; Sensing Beam : Ultrasonic; Power : DC; Max Measurement Range : >500 mm - <=1000 mm; Sensing Mode (Detailed) : Time of Flight; Housing Style : Barrel; Device Type : Sensor; Primary Housing Material : PBT; Indicator : LED(s); Connection : Flying Leads; Quick Disconnect Type : No QD; Analog Resolution/Discrete Repeatability : +/- 0.25% of measured distance (0.5 min); Max Sensing Distance (mm) : 1000; Power Supply : 12-24 V dc; Adjustments : Teach Button; Temperature Effect (mm/°C) : 0.2% of sensing distance/°C; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Output Saturation Voltage NPN Outputs : < 1.0 V at 10 mA ; < 1.5 V at 100 mA; Max Discrete (Switched) Output (mA) : 100; Discrete (Switched) Outputs : 2 NPN; Output Protection : Protected against false pulse on power-up and continuous overload or short-circuit of outputs; IP Rating : IP67; NEMA Rating : NEMA 6P; Max Operating Temperature (°C) : 70; Min Operating Temperature (°C) : -20; Max Op. Relative Humidity Non-Condensing (%) : 100; Minimum Response Time (ms) : 48; Minimum Window Size (mm) : 10; Remote Teach and Laser Control Input Impedence : 55 kΩ; Discrete Output Hysteresis (mm) : 2.5; Ultrasonic Frequency (kHz) : 228; Max Off-state Leakage Current (µA) : 10; Power/Current Consumption (exclusive of load) : 90 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes; Feature: Clear Object Detection : Yes; Application: Ultrasonic : Yes

Typ

T30U

Connection

Flying Leads

Sensorstrahl

Ultrasonic

Stromversorgungstyp

DC

Indikator

LED(s)

Schutzart

IP67
