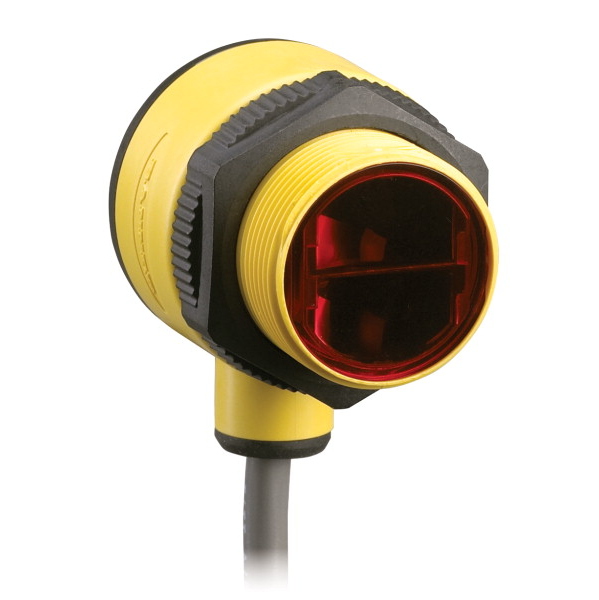

T30AD9FF150Q BANNER ⍾ 41078

Spritzgeschützter IP69K-Sensor der Bauform T30 mit 60 m Reichweite; EZ-BEAM T30 Series NAMUR Fixed-Field Range: 0-150 mm Cutoff; Input: 5to 15V dc Output: Constant Current Output 4 pin M12 Quick-Disconnect Cable; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Power Supply/Supply Voltage : 5-15 V dc; Connection : Integral QD; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 10; Special Feature: Intrinsically Safe : Yes; Sensing Beam Wavelength : 880; Delay at Power-up (ms) : N/A; Repeatability (µs) : N/A; IP Rating : IP67; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 6P, 12; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Hazardous Area : Yes; Feature: Quick Disconnect : Yes

Typ

T30

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Integral QD

Stromversorgungstyp

DC

Stromversorgung

5-15 V dc

Indikator

LEDs

Schutzart

IP67
