T18XSD1EQ BANNER ⍾ 60478

Dieses Produkt wurde als eingestellt eingestellt. Bitte fragen Sie nach Verfügbarkeit oder Ersatz.

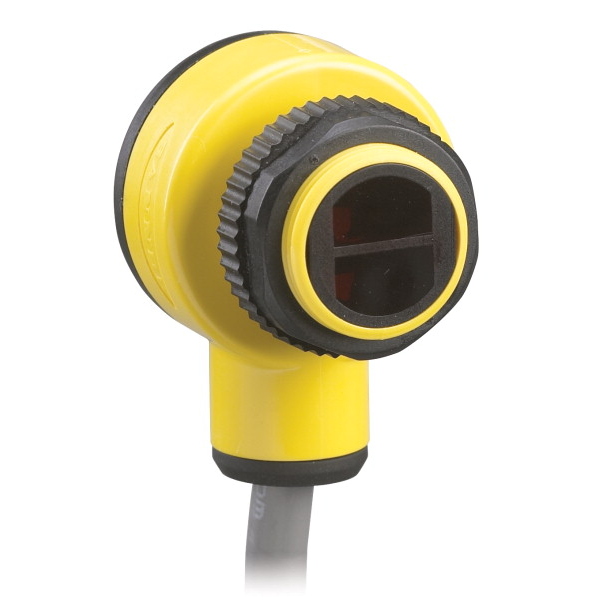

T18 Series Self-Contained Barrel-Mount Sensor; EZ-BEAM T18X Series: Emitter Range: 20 m; Input: 11-25V dc Not applicable - No outputs SDS Bus Euro M12 4-pin Integral QD; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Opposed; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 20000; Outputs : N/A; Power Supply/Supply Voltage : 11-25 V dc; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Operation : N/A; Max Op. Temp. (°C) : 70; Output response time (ms) : N/A; Delay at Power-up (ms) : 100; Repeatability (µs) : 375; IP Rating : IP67, IP69; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Polycarbonate; Adjustments : N/A; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes

Typ

T18

Linsenmaterial

Polycarbonate

Sensorstrahl

Infrared LED

Connection

Integral QD

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

11-25 V dc

Indikator

LEDs

Schutzart

IP67, IP69
