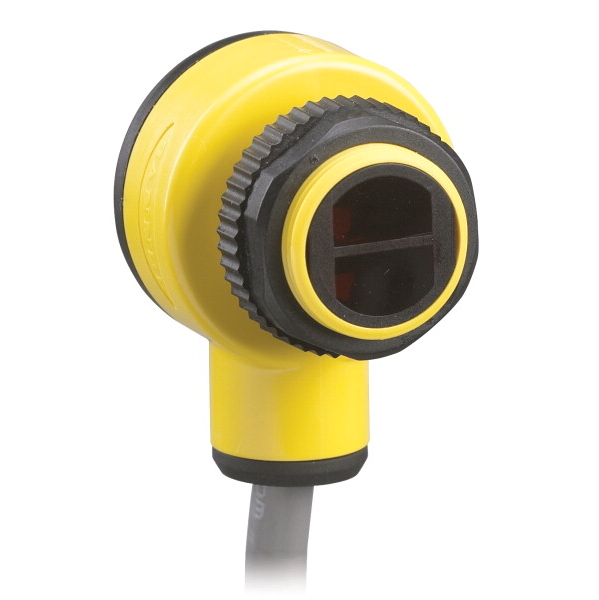

T18SN6DQ BANNER ⍾ 34630

Dieses Produkt wurde als eingestellt eingestellt. Bitte fragen Sie nach Verfügbarkeit oder Ersatz.

T18 Series Self-Contained Barrel-Mount Sensor; EZ-BEAM T18 Series: Diffuse Range: 500 mm; Input: 10-30 V dc Output: Complementary NPN Euro M12 4-pin Integral QD; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Delay at Power-up (ms) : 100; Repeatability (µs) : 750; IP Rating : IP67, IP69; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : Potentiometer; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes; Feature: Health/ Marginal Signal Output : Yes

Typ

T18

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Integral QD

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67, IP69
