T18AW3FF100 BANNER ⍾ 32475

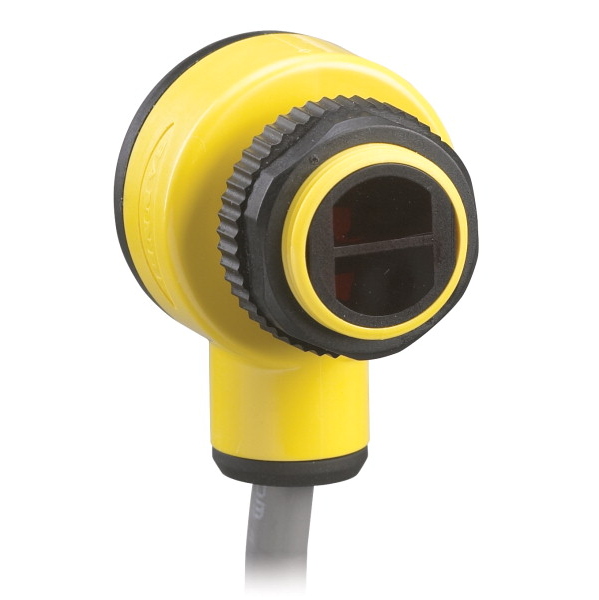

T18 Series Self-Contained Barrel-Mount Sensor; EZ-BEAM T18 Series: Fixed Field Range: 100 mm; Input: 20-250V ac Output: SPST Solid-state Light Operate 2 m (6.5 ft) cable; Sensing Beam : Infrared LED; Power : AC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Outputs : Solid-State AC Switch; Power Supply/Supply Voltage : 20-250 V ac; Connection : Cable; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Repeatability (µs) : 4000; Number of Pins : 3; IP Rating : IP67, IP69; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes

Typ

T18

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

AC

Stromversorgung

20-250 V ac

Indikator

LEDs

Schutzart

IP67, IP69
