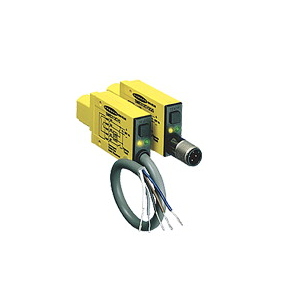

SME312CVWMHSQD BANNER58296

Industriestandard-Sensor der Bauform Mini-Beam; MINI-BEAM EXPERT: High Speed White Convergent Focal Point: 16 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP MHS Response =150 microsecond; QD Connector; Sensing Beam : Visible White LED; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Outputs : Bipolar (NPN & PNP); Power Supply/Supply Voltage : 10-30 V dc; Connection : Integral QD; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.15; Special Feature: Remote Teach : Yes; Delay at Power-up (ms) : 1000; Repeatability (µs) : 100; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : Teach Button; Barrel Diameter (mm) : 18; Indicator : LEDs; Feature: Quick Disconnect : Yes

Lens material
Acrylic
Sensing beam
Visible White LED
Connection
Integral QD
Typical response time
1000 ms
Power supply type
DC
Power supply
10-30 V dc
Indicator
LEDs
Degree of protection
IP67
