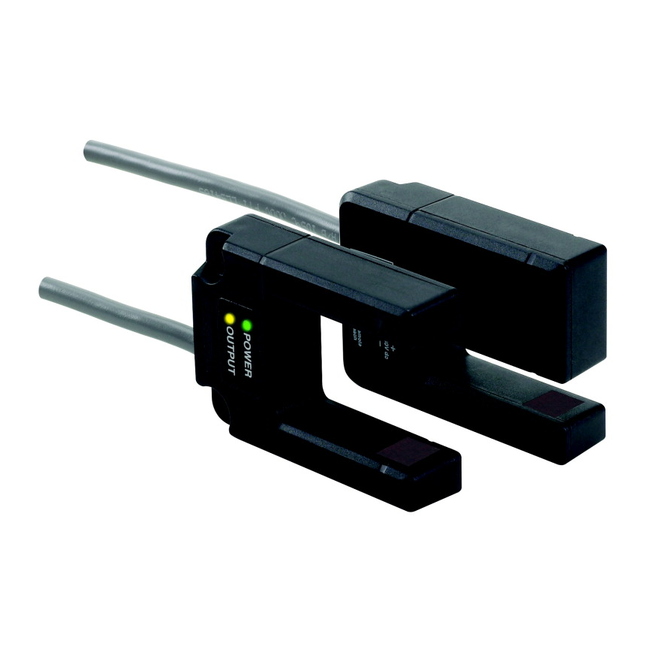

SLE30B6V W/30 BANNER ⍾ 56563

Programmierbare Schlitzsensoren der Bauform SLE10 & SLE30 Expert; SLE30 EXPERT Series: Teach Mode Slot Sensor Slot width: 30 mm; Input: 10-30 V dc Output: Bipolar: 1 NPN; 1 PNP 9 m (30 ft) Cable; Sensing Mode (Detailed) : Emitter/Receiver Pair; Primary Housing Material : Thermoplastic; Slot Depth/Array Length (mm) : 45; Minimum Object Detection (mm) : 1.8; Quick Disconnect Type : No QD; Outputs : Bipolar (NPN & PNP); Slot Overall Depth (mm) : 52; Slot Overall Depth (mm) : 72; Number of Pins : 5; Output response time (ms) : 0.5; Repeatability (µs) : 100; Adjustments : Teach Button; Lens Material : Acrylic; Special Feature: Remote Teach : Yes; Delay at Power-up (ms) : 1000; Operation : Light/Dark Operate; Indicator : LEDs; Max Op. Temperature (°C) : 70; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 90% @ 50°C; IP Rating : IP67; NEMA Rating : NEMA 6; Minimum Object Detection [mm] : 1.8

Typ

Programmierbare Schlitzsensoren der Bauform SLE10 & SLE30 Expert

Connection

Cable

Linsenmaterial

Acrylic

Typische Reaktionszeit

1000 ms

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
