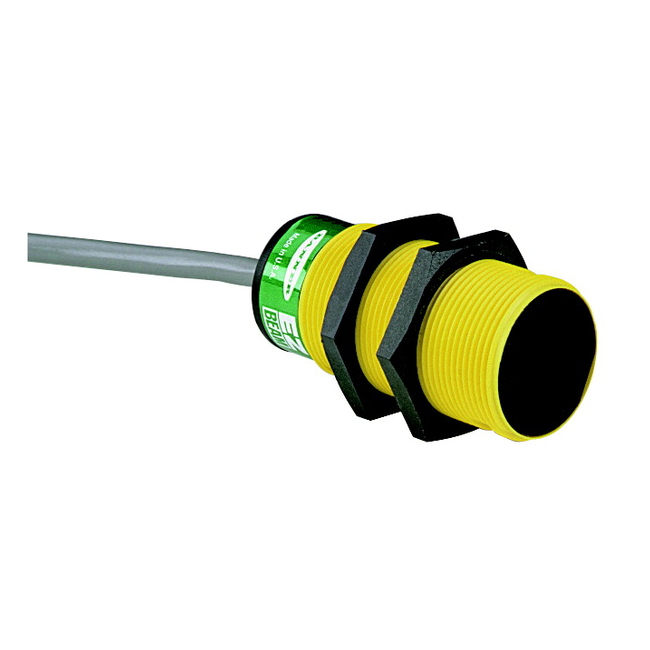

S30SP6FF200 BANNER ⍾ 32330

Sensor der Bauform S30 mit 30-mm-Kunststoff-Gewindebauform; EZ-BEAM S30 Series: Fixed Field Range: 200 mm; Input: 10-30V dc Output: Complementary PNP 2 m (6.5 ft) Cable; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Delay at Power-up (ms) : 100; Repeatability (µs) : 750; Number of Pins : 4; NEMA Rating : NEMA 6P; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Health/ Marginal Signal Output : Yes

Typ

S30

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
