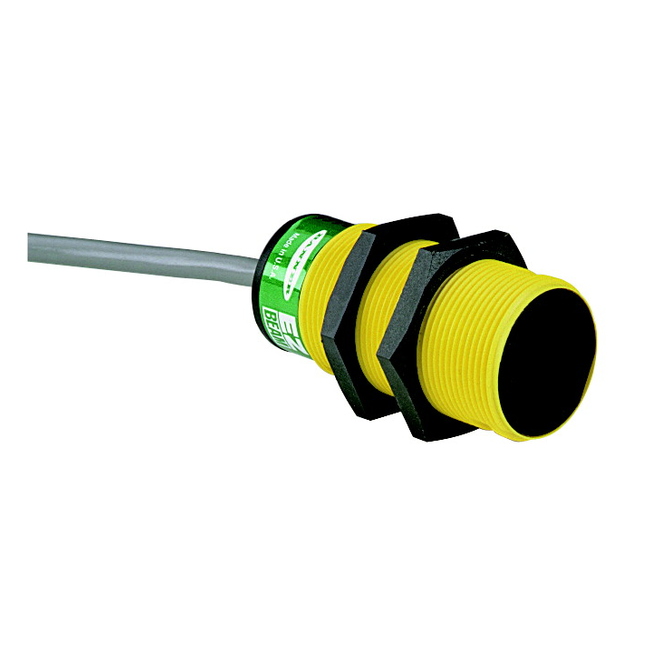

S30RW3RE BANNER ⍾ 37089

Sensor der Bauform S30 mit 30-mm-Kunststoff-Gewindebauform; S30RW3RE RECEIVER/EMITTER; Cable Length (m) : 2; Sensing Beam : Infrared LED; Power : AC; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter/Receiver Pair; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 60000; Outputs : Solid-State AC Switch; Power Supply/Supply Voltage : 20-250 V ac; Connection : Cable; Quick Disconnect Type : No QD; Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Delay at Power-up (ms) : 100; Repeatability (µs) : 2000; NEMA Rating : NEMA 6P; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Opposed Mode Emitter/Receiver : Pair; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes

Typ

S30

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

AC

Stromversorgung

20-250 V ac

Indikator

LEDs

Schutzart

IP67
