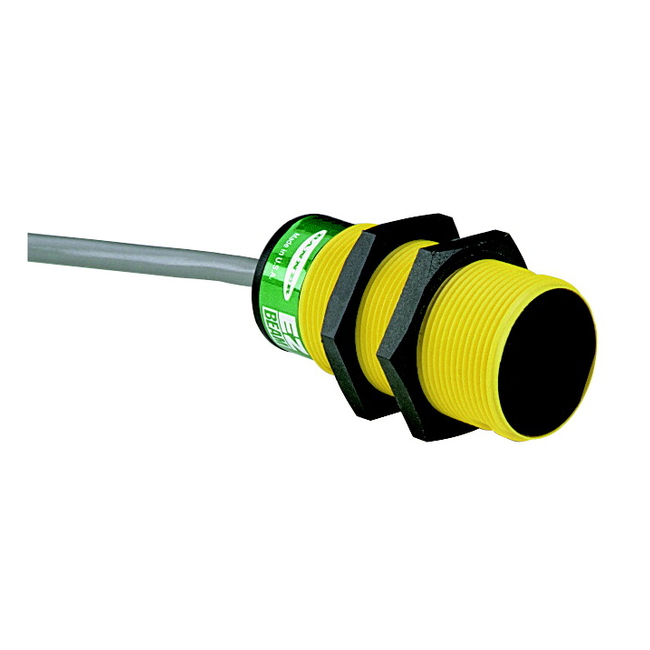

S30RW3R BANNER ⍾ 33363

Sensor der Bauform S30 mit 30-mm-Kunststoff-Gewindebauform; EZ-BEAM S30 Series: Receiver Range: 60 m; Input: 20-250V ac Output: SPST Solid-state Dark Operate 2 m (6.5 ft) Cable; Sensing Beam : Infrared LED; Power : AC; Sensing Mode (General) : Opposed; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 60000; Outputs : Solid-State AC Switch; Power Supply/Supply Voltage : 20-250 V ac; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Delay at Power-up (ms) : 100; Repeatability (µs) : 2000; IP Rating : IP67; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes

Typ

S30

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

AC

Stromversorgung

20-250 V ac

Indikator

LEDs

Schutzart

IP67
