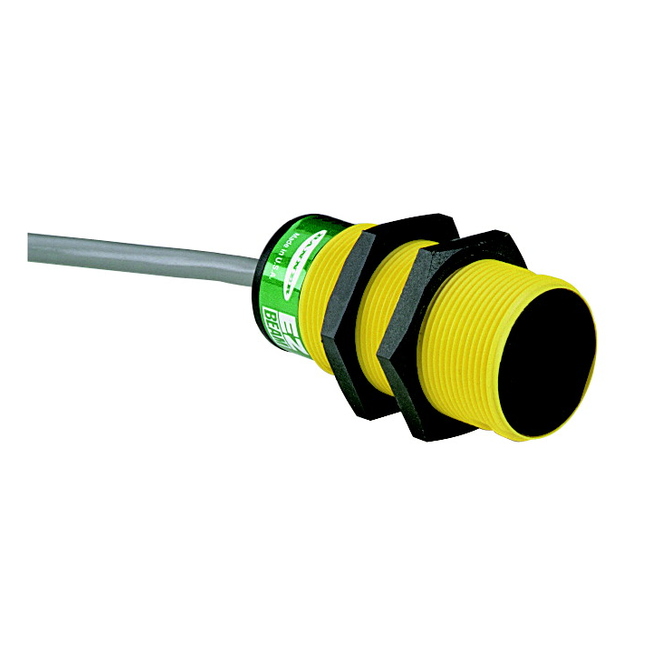

S30AW3FF200Q1 BANNER ⍾ 33364

Sensor der Bauform S30 mit 30-mm-Kunststoff-Gewindebauform; EZ-BEAM S30 Series: Fixed Field Range: 200 mm; Input: 20-250 V ac Output: SPST Solid-state Light Operate Micro 4-pin Integral QD; Sensing Beam : Infrared LED; Power : AC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Outputs : Solid-State AC Switch; Quick Disconnect Type : 1/2 in. (Micro); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Delay at Power-up (ms) : 100; Repeatability (µs) : 4000; NEMA Rating : NEMA 6P; IP Rating : IP69; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Typ

S30

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Integral QD

Typische Reaktionszeit

100 ms

Stromversorgungstyp

AC

Stromversorgung

20-250 V ac

Indikator

LEDs

Schutzart

IP69
