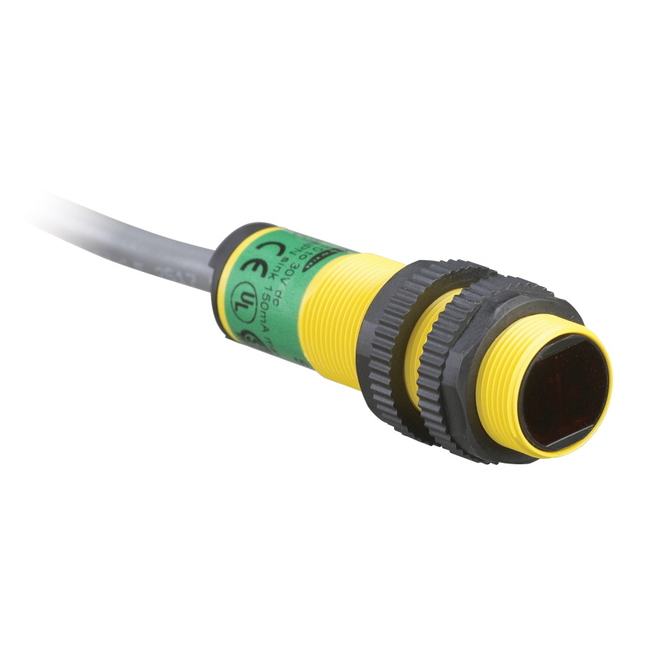

S186EQDP BANNER ⍾ 44019

Vollvergossener Sensor der Bauform S18 in Gewindebauform; S186EQDP DC EMITTER PIGTAIL QD 6 in PIGTAIL; Sensing Beam : Infrared LED; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 20000; Outputs : N/A; Power Supply/Supply Voltage : 10-30 V dc; Connection : Pigtail QD; Quick Disconnect Type : M12 (Euro); Operation : N/A; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : N/A; Delay at Power-up (ms) : 100; Repeatability (µs) : 375; Number of Pins : 4; NEMA Rating : NEMA 6P; IP Rating : IP67, IP69; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Polycarbonate; Adjustments : N/A; Indicator : LEDs; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Quick Disconnect : Yes; Feature: Health/ Marginal Signal Output : Yes

Typ

S18

Linsenmaterial

Polycarbonate

Sensorstrahl

Infrared LED

Connection

Pigtail QD

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67, IP69
