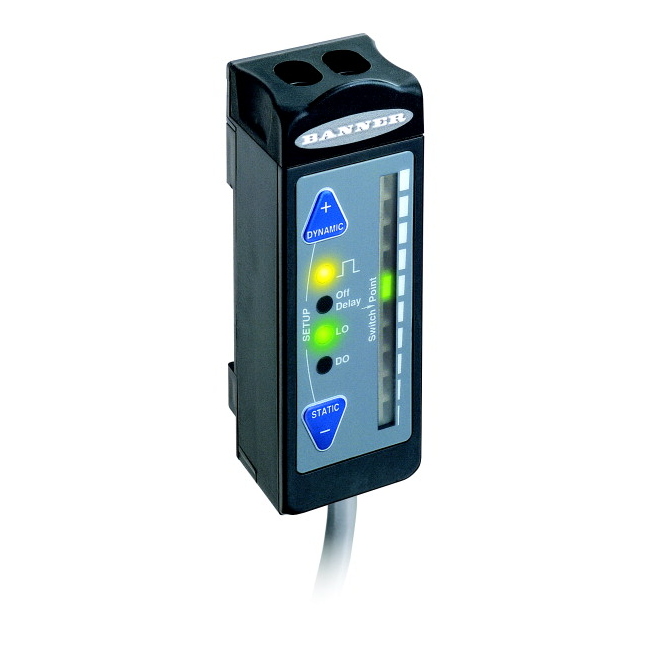

BANNER R55FPQ

R55FPQ BANNER ⍾ 58020

Lichtleiter-Sensor für Druckmarkenerfassung Bauform R55F; R55 Color Mark: Plastic Fiber w/ Red LED Range: Depends on Fiber used; Input: 10-30 V dc Outputs: Bipolar NPN/PNP Quick-Disconnect Connector; Power : DC; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Fiber Type : Plastic and Glass; Connection : Integral QD; Output : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Output Type (Specific) : Single Discrete; Repeatability (µs) : 50; IP Rating : IP67; NEMA Rating : NEMA 6; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Special Feature: Remote Teach : Yes; Adjustments : Teach Button; Delay at Power-up (ms) : 100; Indicator Display Type : Bargraph; Minimum response time (ms) : .05; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes; Application: Registration Mark : Yes; Housing Material : Thermoplastic

Connection
Integral QD
Typical response time
100 ms
Power supply
10-30 V dc
Power supply type
DC
Degree of protection
IP67
