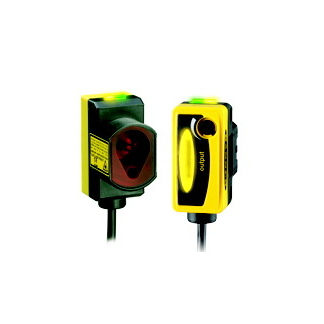

QS30LP BANNER ⍾ 72544

Hochleistungssensor der Bauform QS30 mit hoher Reichweite; WORLD-BEAM QS30 Series: Polarized Retro Range: 8 m; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP 2 m (6.5 ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Retroreflective; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 8000; Outputs : Bipolar (NPN & PNP); Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Sensing Beam Wavelength : 630; Delay at Power-up (ms) : 100; Repeatability (µs) : 500; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Lens Material : Acrylic; Adjustments : Potentiometer; Indicator : LEDs

Typ

QS30

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
