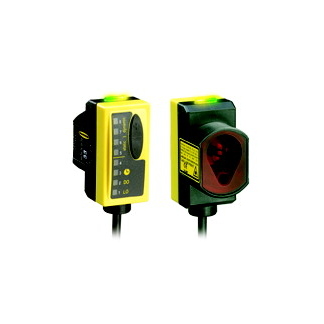

QS30LDQPMA BANNER ⍾ 72100

Hochleistungssensor der Bauform QS30 mit hoher Reichweite; WORLD-BEAM QS30: Laser Diffuse (Class 1) Range: 400 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP 6 in (150 mm) PUR pigtail Euro-style QD; Sensing Beam : Visible Red Laser; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Outputs : Bipolar (NPN & PNP); Power Supply/Supply Voltage : 10-30 V dc; Connection : Pigtail PUR QD; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -10; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 650; Delay at Power-up (ms) : 1000; Repeatability (µs) : 70; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Acrylic; Adjustments : Teach Button; Indicator : LEDs; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Typ

QS30

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red Laser

Connection

Pigtail PUR QD

Typische Reaktionszeit

1000 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
