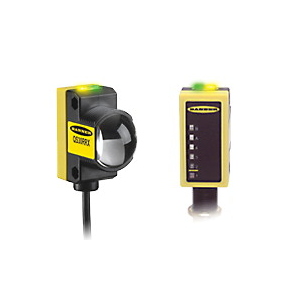

QS30ARXQ BANNER ⍾ 71562

Hochleistungssensor der Bauform QS30 mit hoher Reichweite; WORLD-BEAM QS30 Series: High-Powered Receiver Range: 213 m; Input: 10-30V dc Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP Euro-Style Quick Disconnect Connector; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Opposed; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 213000; Outputs : Bipolar (NPN & PNP); Power Supply/Supply Voltage : 10-30 V dc; Connection : Integral QD; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 5; Sensing Beam Wavelength : 875; Delay at Power-up (ms) : 100; Repeatability (µs) : 5000; Number of Pins : 5; IP Rating : IP69; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Zeonex; Adjustments : N/A; Indicator : Bargraph; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Typ

QS30

Connection

Integral QD

Linsenmaterial

Zeonex

Sensorstrahl

Infrared LED

Typische Reaktionszeit

100 ms

Stromversorgung

10-30 V dc

Indikator

Bargraph

Schutzart

IP69
