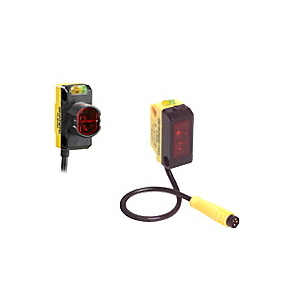

QS18VP6LAF250 BANNER ⍾ 75739

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM QS18 LASER ADJUSTABLE FIELD; CLASS 2 Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm); Input: Output: PNP 2m Cable; Sensing Beam : Visible Red Laser; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : ABS; Small Visible Spot : Laser; Laser Classification : Class 2; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -10; Output response time (ms) : 0.7; Sensing Beam Wavelength : 658; Delay at Power-up (ms) : 200; Repeatability (µs) : 130; Number of Pins : 4; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Acrylic; Adjustments : Mechanical Screw; Barrel Diameter (mm) : N/A; Indicator : LEDs

Typ

QS18

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red Laser

Connection

Cable

Typische Reaktionszeit

200 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
