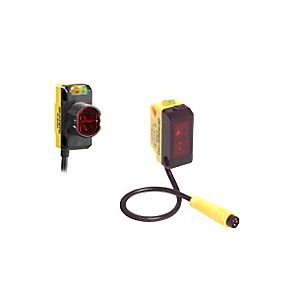

QS18VP6AF100QPMA BANNER ⍾ 75193

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM: Adjustable Field Range: 1 mm Cutoff pt (adj btwn 20-100 mm); Input: 1 Output; PNP 150mm Pigtail Euro Quick-Disconnect Connector; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : ABS; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Connection : Pigtail PUR QD; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.7; Sensing Beam Wavelength : 640; Delay at Power-up (ms) : 200; Repeatability (µs) : 175; Number of Pins : 4; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Acrylic; Adjustments : Mechanical Screw; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Quick Disconnect : Yes

Typ

QS18

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red LED

Connection

Pigtail PUR QD

Typische Reaktionszeit

200 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
