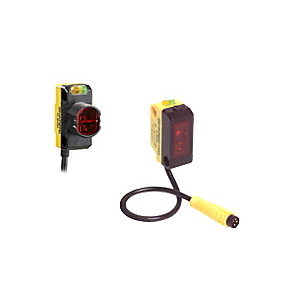

QS18VP6AF100 BANNER ⍾ 65502

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM: Adjustable Field Range:1-100mm Adj Cutoff:20-100mm; Input:10-30V dc Outputs: Complementary PNP 2m (6.5ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : ABS; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.7; Sensing Beam Wavelength : 640; Delay at Power-up (ms) : 200; Repeatability (µs) : 175; Number of Pins : 4; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Acrylic; Adjustments : Mechanical Screw; Barrel Diameter (mm) : N/A; Indicator : LEDs

Typ

QS18

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

200 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
