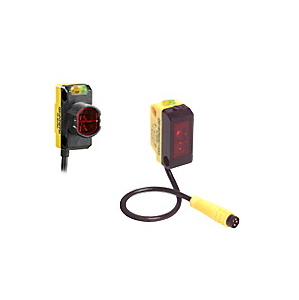

QS18VN6FF50 BANNER ⍾ 71637

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM Q18 Series: Fixed-Field Range: 50 mm; Input: 10-30V dc Output: Complementary Solid State NPN 2 m (6.5 ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Small Visible Spot : LED; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.85; Sensing Beam Wavelength : 630; Delay at Power-up (ms) : 100; Repeatability (µs) : 160; Number of Pins : 4; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs

Typ

QS18

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
