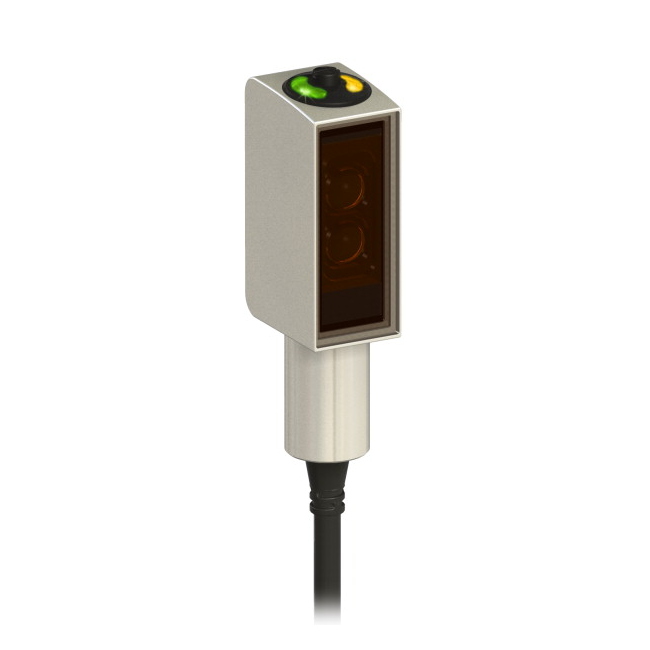

QMH26VNAF200-5M BANNER ⍾ 28803

QMH26 Series Hygienic Washdown Sensor; QMH26 Hygienic Series: Adjustable BGS (Small Red LED) Range: 200 mm; Input: 10 - 30 Vdc Output: Complementery Solid State NPN 5 m (16.25 ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Stainless Steel; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -30; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.5; Sensing Beam Wavelength : 660; Delay at Power-up (ms) : 300; Repeatability (µs) : 150; Number of Pins : 4; NEMA Rating : N/A; IP Rating : IP69; Max Op. Relative Humidity [%] : 95% @ 55°C; Lens Material : PMMA; Adjustments : Screw Adjustment; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Chemical Resistant : Yes

Typ

QMH26

Linsenmaterial

PMMA

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

300 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP69
