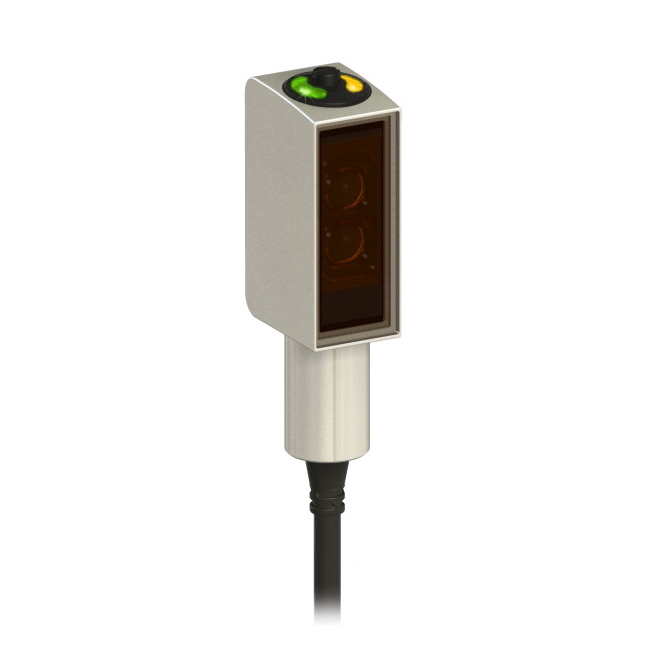

QMH26ENXLPC-5M BANNER ⍾ 28776

QMH26 Series Hygienic Washdown Sensor; QMH26 Hygienic Series: Low Contrast Coaxial Polarized Retro Range: 2.6 m; Input: 10 - 30 V dc Output: Solid State NPN with teach Input 5 m (16.25 ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized (Coaxial); Housing Style : Rectangular; Primary Housing Material : Stainless Steel; Input/Output : Discrete; Max Sensing Distance (mm) : 2600; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -30; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 620; Delay at Power-up (ms) : 300; Repeatability (µs) : 150; Number of Pins : 4; NEMA Rating : N/A; IP Rating : IP69; Max Op. Relative Humidity [%] : 95% @ 55°C; Lens Material : PMMA; Adjustments : Teach Button; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Clear Object Detection : Yes; Feature: Ecolab Certified : Yes; Feature: Chemical Resistant : Yes

Typ

QMH26

Linsenmaterial

PMMA

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

300 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP69
