Q60BB6AF2000 BANNER ⍾ 63000

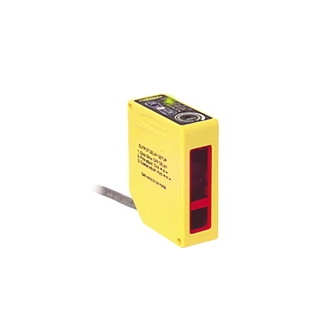

Sensoren mit einstellbarer Hintergrundausblendung und 2 m Reichweite - Bauform Q60; Q60 Series: Adjustable-Field Infrared Range: 200-2000 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP 2 m (6.5 ft) Cable; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Outputs : Bipolar (NPN & PNP); Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Special Feature: Remote Teach : Yes; Delay at Power-up (ms) : 150; Repeatability (µs) : 500; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : Screw Adjustment; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Timing (Hold/Delay) : Yes

Typ

Q60

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

150 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
