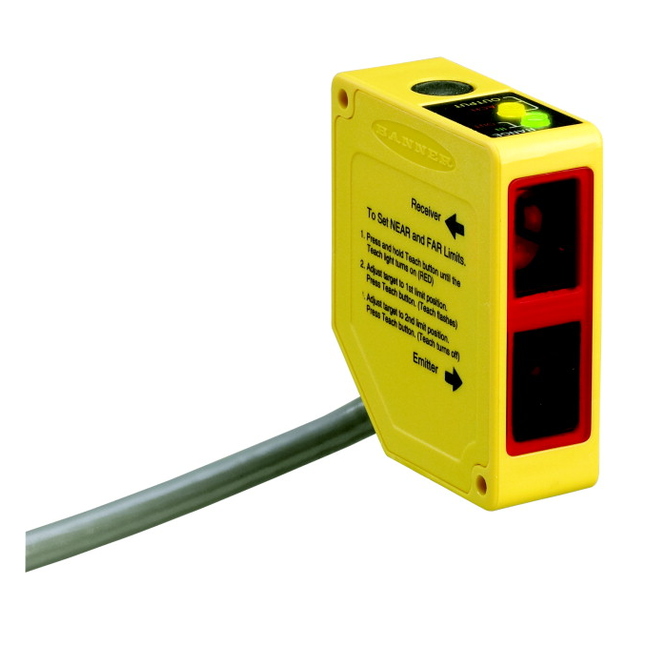

LED-Messsensor der Bauform Q50; Q50 Series: LED-based Triangulation Measurement Infrared LED Range: 50-200 mm; Input: 15 to 30 V dc Output: 4 to 20 mA; Response: 4 / 64 ms Selectable 2 m (6.5ft) Cable; Max Measurement Range : >100 mm - <=500 mm; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : ABS/Polycarbonate; Input/Output : Analog; Indicator : LED(s); Connection : Flying Leads; Analog Output Configuration : 4-20 mA; Quick Disconnect Type : No QD; Analog Resolution/Discrete Repeatability : 0.5; Power Supply : 15-30 V dc; Delay at Power-up (ms) : 2000; Sensing Beam Wavelength (nm) : 880; Adjustments : Teach Button; Temperature Effect (mm/°C) : 0.08 mm/°C from 0 to 50°C, 0.11 mm/°C from -10 to 55°C; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Analog Current Output Rating : 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω; Output Protection : Protected against short circuit conditions; IP Rating : IP67; NEMA Rating : NEMA 6; Max Operating Temperature (°C) : 55; Min Operating Temperature (°C) : -10; Max Op. Relative Humidity Non-Condensing (%) : 90 at 50°C; Window Material : Acrylic; Spot Size (@ Reference Distance) : 20 mm; Analog Linearity (mm) : +/- 1.5; Color Sensitivity (Typical) : 90% white to 18% gray: < 1.25 mm; 90% white to 6% black: < 5.5 mm (see chart for details); Remote Teach and Laser Control Input Impedence : 15 kΩ; Max Ambient Light (Lux) : 10000; Power/Current Consumption (exclusive of load) : 70 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes

Typ
Laser-Entfernungsmessung
Connection
Flying Leads
Sensorstrahl
Infrared LED
Typische Reaktionszeit
2000 ms
Stromversorgungstyp
DC
Indikator
LED(s)
Schutzart
IP67
