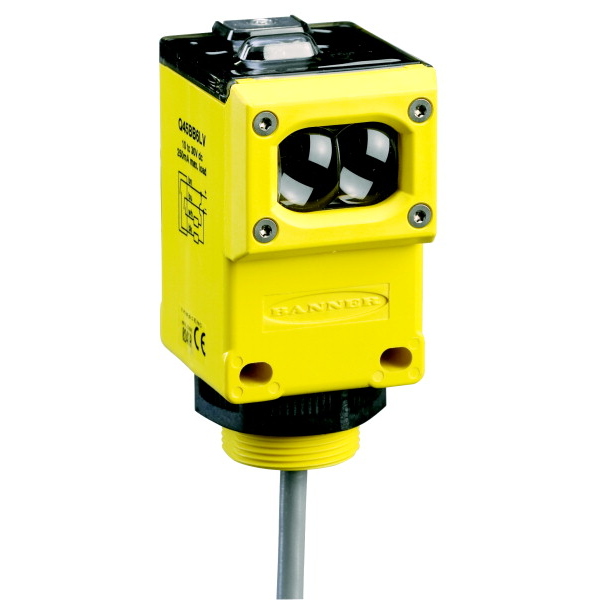

Q45VR2FVQ BANNER ⍾ 43544

Lichtleiter-Verstärker: Bauform Q45; Q45 Series: Visible Red Glass Fiber Optic Range: depends on fiber used; Input: 90-250 V ac Output: SPDT Electromechanical Relay Quick-Disconnect Connector; Power : AC; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Fiber Type : Glass Only; Connection : Integral QD; Output : SPDT e/m Relay; Quick Disconnect Type : 7/8 in. (Mini); Output Type (Specific) : Single Discrete; Repeatability (µs) : 500; IP Rating : IP67; NEMA Rating : NEMA 6P; Max Op. Temperature (°C) : 70; Min Op. Temperature (°C) : -40; Max Op. Relative Humidity (%) : 90% @ 50°C; Adjustments : Potentiometer; Delay at Power-up (ms) : 100; Indicator Display Type : Indicator LEDs; Minimum response time (ms) : 15; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes; Housing Material : Thermoplastic

Typ

Q45

Connection

Integral QD

Typische Reaktionszeit

100 ms

Stromversorgung

90-250 V ac

Stromversorgungstyp

AC

Schutzart

IP67
