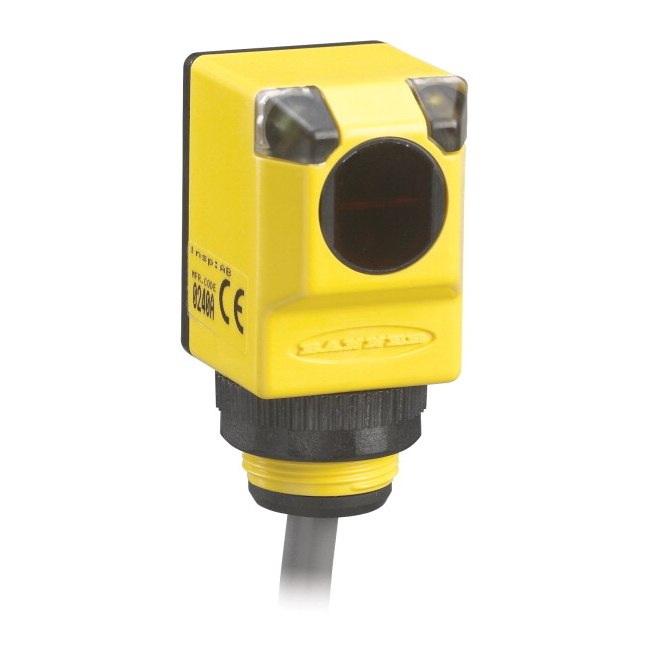

Q25RW3R BANNER ⍾ 31968

Abgewinkelter Sensor zur Montage auf abgewinkeltem Sockel: Bauform Q25; EZ-BEAM Q25 Series: Receiver Range: 20 m; Input: 20-250V ac Output: SPST Solid-state Dark Operate 2 m (6.5 ft) cable; Sensing Beam : Infrared LED; Power : AC; Sensing Mode (General) : Opposed; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 20000; Outputs : Solid-State AC Switch; Power Supply/Supply Voltage : 20-250 V ac; Connection : Cable; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Delay at Power-up (ms) : 100; Repeatability (µs) : 2000; Number of Pins : 3; NEMA Rating : NEMA 6P; IP Rating : IP69; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Polycarbonate; Adjustments : N/A; Barrel Diameter (mm) : 18; Indicator : LEDs; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes

Typ

Q25

Linsenmaterial

Polycarbonate

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

AC

Stromversorgung

20-250 V ac

Indikator

LEDs

Schutzart

IP69
