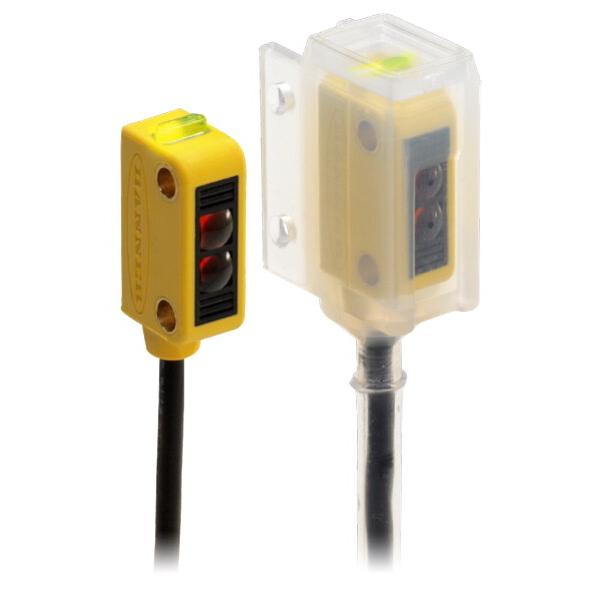

Q126ECR BANNER ⍾ 76488

Kompakter Miniatur-Sensor der Bauform Q12; WORLD-BEAM Q12 Series: Chemically Resistant; E Range: 1.5 m; Input 10-30V dc Output: No outputs 2m (6 ft) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 2000; Outputs : N/A; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Operation : N/A; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1.3 ON/0.7 OFF; Sensing Beam Wavelength : 640; Delay at Power-up (ms) : 120; Repeatability (µs) : 175; IP Rating : IP67; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Polycarbonate; Adjustments : N/A; Barrel Diameter (mm) : N/A; Indicator : LEDs; Opposed Mode Emitter/Receiver : Emitter; Feature: Chemical Resistant : Yes

Typ

Q12

Linsenmaterial

Polycarbonate

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

120 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
