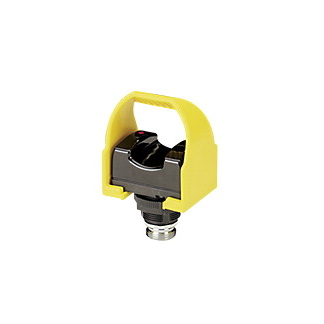

OTBVR81QDHP BANNER ⍾ 02922

Optische Taster: Bauform OTB; OTB Series: Momentary Action Touch Button w/Black F.C. Input: 20-30V ac or dc; Upper Housing: Polysulfone Output: E/M Relay (SPDT) Euro 5-pin 150 mm (6 in) PVC Pigtail Connector; Non-Illuminated : Yes; Power : DC or AC; Power Source : DC or AC; Sensing Mode (General) : Single Point Optical; Housing Style : Base Mount - Saddle; Primary Housing Material : Thermoplastic Polysulfone; Actuation : Yes; Activation Function : Optical; Mounting Thread : M30 x 1.5; Product Size (mm) : Other; Connection : Pigtail QD; Quick Disconnect Type : M12 (Euro); Operation : Normally Open/Normally Closed; Supply Voltage : 20-30 V dc/ac; Output Type : SPDT e/m Relay; Input Type : AC; Max Input Response Time (ms) : 100; Max Output Response Time (ms) : 100; Physical Dimensions (LxWxH or DxH mm) : 59.9 x 43.2 x 48.0; Environmental Rating : IP66; NEMA Type and UL Type Rating : NEMA 1, 3, 4, 4X, 12, 13; Max Op. Relative Humidity Non-Condensing (%) : 90% @ 50°C; Min Op. Temperature (°C) : -20; Secondary Material : Thermoplastic; Feature: Quick Disconnect : Yes

Typ

OTB

Connection

Pigtail QD

Stromversorgungstyp

DC or AC

Produktabmessungen

59.9 x 43.2 x 48.0 mm
