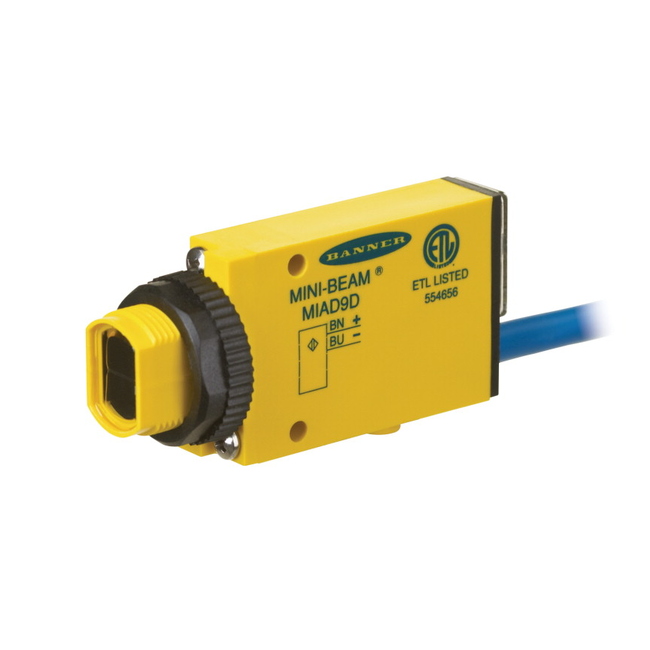

MIAD9F BANNER ⍾ 37715

Lichtleiter-Verstärker: Bauform MINI-BEAM; MINI-BEAM NAMUR: Glass Fiber Optic Range: depends on fiber; Input: 5-15V dc Output: NAMUR 2 m (6.5 ft) cable; Power : DC; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Infrared; Fiber Type : Glass Only; Connection : Cable; Output : Constant Current; Quick Disconnect Type : No QD; Output Type (Specific) : Single Discrete; Repeatability (µs) : N/A; IP Rating : IP67; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; Max Op. Temperature (°C) : 70; Min Op. Temperature (°C) : -40; Max Op. Relative Humidity (%) : 90% @ 50°C; Intrinsically Safe : Yes; Adjustments : Potentiometer; Power Supply/Supply Voltage : 5-15 V dc; Indicator Display Type : Indicator LEDs; Feature: Hazardous Area : Yes; Housing Material : Thermoplastic

Typ

MINI-BEAM

Connection

Cable

Stromversorgungstyp

DC

Stromversorgung

5-15 V dc

Schutzart

IP67
