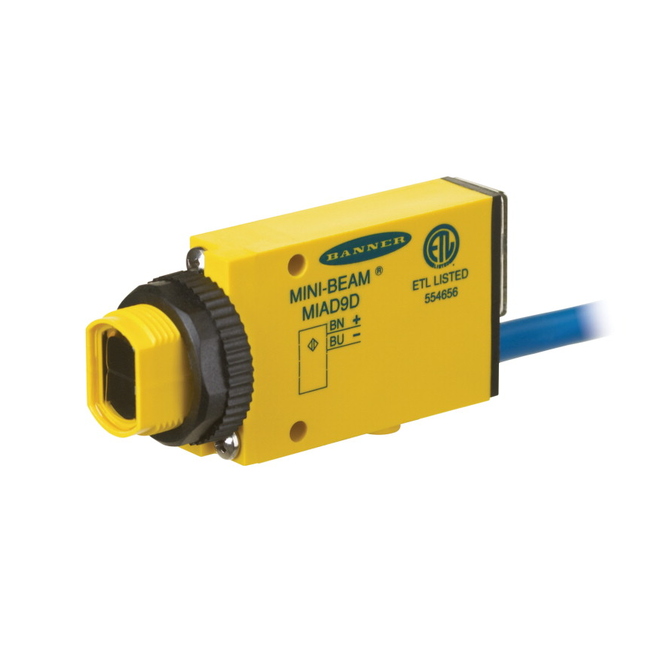

MIAD9D BANNER ⍾ 37714

Industriestandard-Sensor der Bauform Mini-Beam; MINI-BEAM NAMUR: Diffuse Range: 380 mm; Input: 5-15V dc Output: NAMUR 2 m (6.5 ft) cable; Sensing Beam : Infrared LED; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Outputs : Constant Current; Power Supply/Supply Voltage : 5-15 V dc; Connection : Cable; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Special Feature: Intrinsically Safe : Yes; Delay at Power-up (ms) : N/A; Repeatability (µs) : N/A; IP Rating : IP67; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Indicator : LEDs; Feature: Encapsulated : Yes; Feature: Hazardous Area : Yes

Typ

MINI-BEAM

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Cable

Stromversorgungstyp

DC

Stromversorgung

5-15 V dc

Indikator

LEDs

Schutzart

IP67
