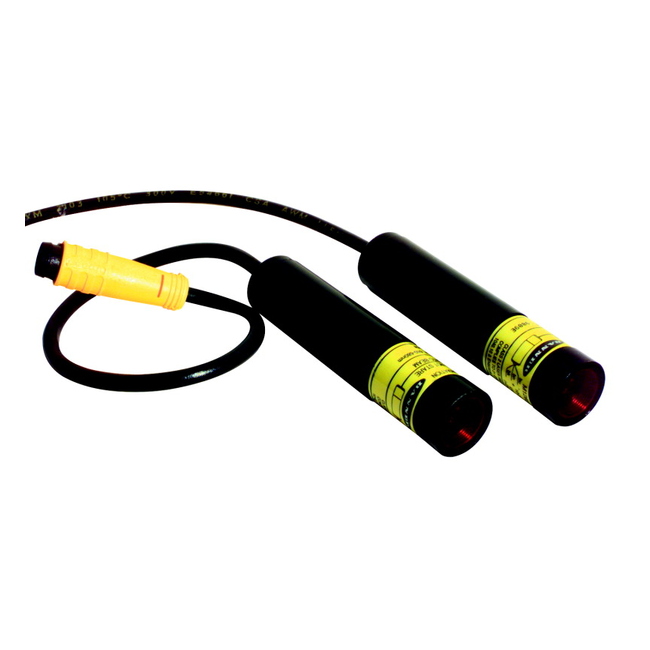

M126E1LDQ5 BANNER ⍾ 72691

Lasersender M12 mit Aluminiumrohr; M12 Laser: Class 1 Emitter Range: 30 m; Input: 10-30 V dc Output: Not appliCable - No outputs Euro M12 Pigtail QD; Cable Length (m) : 0.15; Sensing Beam : Visible Red Laser; Power : DC; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Laser Emitter; Housing Style : Barrel; Primary Housing Material : Aluminum; Max Sensing Distance (mm) : 30000; Outputs : N/A; Quick Disconnect Type : M12 (Euro); Operation : N/A; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 60; Output response time (ms) : N/A; Sensing Beam Wavelength : 650; Repeatability (µs) : 36; Number of Pins : 4; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 40°C; Lens Material : Acrylic; Adjustments : N/A; Indicator : LEDs; Feature: Quick Disconnect : Yes

Typ

M12

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red Laser

Connection

Pigtail QD

Typische Reaktionszeit

30 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
