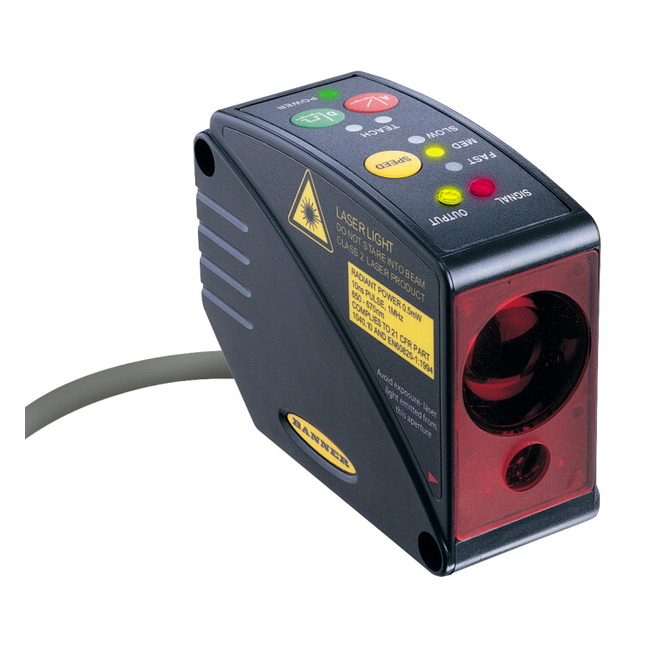

LT3PIQ BANNER ⍾ 65513

Laser-Entfernungsmessgerät der Bauform LT3 mit 50 m Reichweite; LT3 Series: Diffuse T.O.F. Laser Distance Measurement Range: 0.3-5.0 m; Input: 12-24 V dc Analog Output: 4 to 20 mA; Discrete Output: PNP Euro 8-pin Quick-Disconnect; Max Measurement Range : >1 m - <=20 m; Sensing Beam : Visible Red Laser; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Time of Flight; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : ABS; Laser Classification : Class 2; Input/Output : Analog & Discrete; Indicator : LED(s); Connection : Integral QD; Analog Output Configuration : 4-20 mA; Quick Disconnect Type : M12 (Euro); Analog Resolution/Discrete Repeatability : 1 to 1.25 at slow response speed; Max Sensing Distance (mm) : 5000; Minimum Sensing Distance (mm) : 300; Delay at Power-up (ms) : 1000; Sensing Beam Wavelength (nm) : 658; Adjustments : Push Button; Remote Teach; Temperature Effect (mm/°C) : 2 mm/°C; Output Saturation Voltage PNP Outputs : < 1.2 V at 10 mA; < 1.6 V at 100 mA; Analog Current Output Rating : 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω; Max Discrete (Switched) Output (mA) : 100; Discrete (Switched) Outputs : 1 PNP; Output Protection : Protected against short circuit conditions; IP Rating : IP67; NEMA Rating : NEMA 6; Max Operating Temperature (°C) : 50; Max Op. Relative Humidity Non-Condensing (%) : 90 at 50°C; Window Material : Acrylic; Warm-up Time (minutes) : 30; Spot Size (@ Reference Distance) : 6 mm; Analog Linearity (mm) : +/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m; Color Sensitivity (Typical) : 90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm; Remote Teach and Laser Control Input Impedence : 18 kΩ min. (65 kΩ min at 5 V dc); Laser Control : Yes; Max Ambient Light (Lux) : 5000; Power/Current Consumption (exclusive of load) : 108 mA max @ 24 V dc; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Typical Laser Lifetime (Hours) : 75000; Feature: Remote Teach : Yes; Feature: Quick Disconnect : Yes

Typ

Laser-Entfernungsmessung

Connection

Integral QD

Sensorstrahl

Visible Red Laser

Typische Reaktionszeit

1000 ms

Stromversorgungstyp

DC

Indikator

LED(s)

Schutzart

IP67
