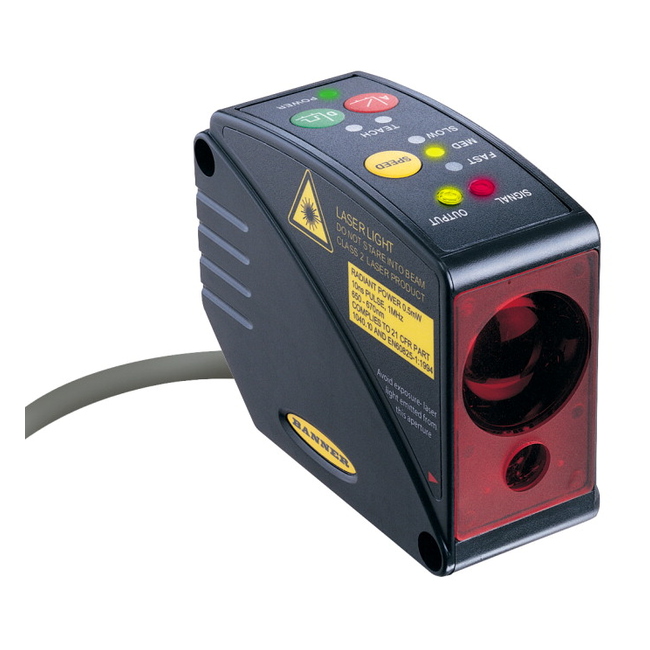

LT3BD BANNER ⍾ 65517

Laser-Entfernungsmessgerät der Bauform LT3 mit 50 m Reichweite; LT3 Series: Laser Diffuse Time-Of-Flight Sensor Range: 300 mm to 5 m; 12-24 V dc Outputs: Discrete: 2 PNP or NPN 2 m (6.5 ft) Cable; Max Measurement Range : >1 m - <=20 m; Sensing Beam : Visible Red Laser; Power : DC; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Time of Flight; Housing Style : Rectangular; Primary Housing Material : ABS; Laser Classification : Class 2; Indicator : LED(s); Connection : Flying Leads; Quick Disconnect Type : No QD; Analog Resolution/Discrete Repeatability : 1 to 1.25 at slow response speed; Max Sensing Distance (mm) : 5000; Delay at Power-up (ms) : 1000; Sensing Beam Wavelength (nm) : 658; Adjustments : Push Button; Remote Teach; Temperature Effect (mm/°C) : 2 mm/°C; Number of Pins : 8; Output Saturation Voltage NPN Outputs : < 0.2 V at 10 mA; < 0.6 V at 100 mA; Output Saturation Voltage PNP Outputs : < 1.2 V at 10 mA; < 1.6 V at 100 mA; Max Discrete (Switched) Output (mA) : 100; Discrete (Switched) Outputs : 2 NPN/PNP Configurable; Output Protection : Protected against short circuit conditions; IP Rating : IP67; NEMA Rating : NEMA 6; Max Operating Temperature (°C) : 50; Max Op. Relative Humidity Non-Condensing (%) : 90 at 50°C; Window Material : Acrylic; Spot Size (@ Reference Distance) : 6 mm; Minimum Window Size (mm) : 20; Color Sensitivity (Typical) : 90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm; Remote Teach and Laser Control Input Impedence : 18 kΩ min. (65 kΩ min at 5 V dc); Laser Control : Yes; Max Ambient Light (Lux) : 5000; Power/Current Consumption (exclusive of load) : 108 mA max @ 24 V dc; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Typical Laser Lifetime (Hours) : 75000; Feature: Remote Teach : Yes

Typ

Laser-Entfernungsmessung

Connection

Flying Leads

Sensorstrahl

Visible Red Laser

Typische Reaktionszeit

1000 ms

Stromversorgungstyp

DC

Indikator

LED(s)

Schutzart

IP67
