EA5R300NUXMODQ BANNER ⍾ 76197

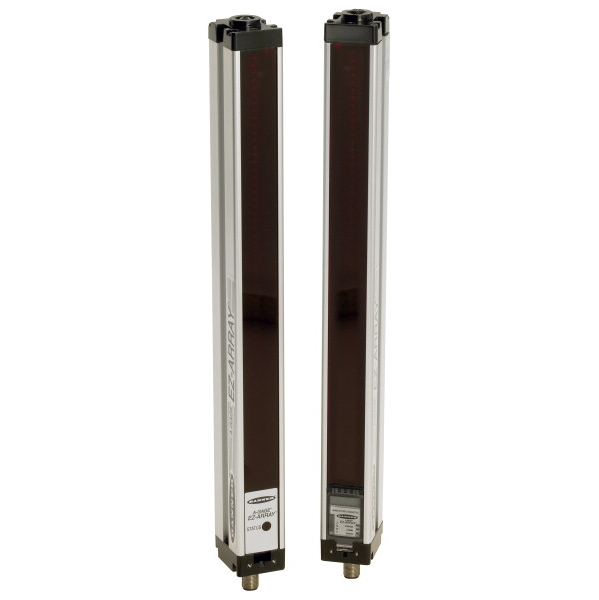

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Receiver: 300 mm (11.8 in.) Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485 Euro 8-pin Quick-Disconnect; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Number of Beams : 60; Min Temp (°C) : -40; Housing Length (mm) : 379; Max Temp (°C) : 70; Analog Output : Voltage (0-10 V); Emitter/Receiver Range (m) : 0.4 - 4; Max Relative Humidity : 95%; Minimum Object Sensitivity (mm) : 5-10

Typ

EZ-Array
