EA5R1800NIXMODQ BANNER ⍾ 75420

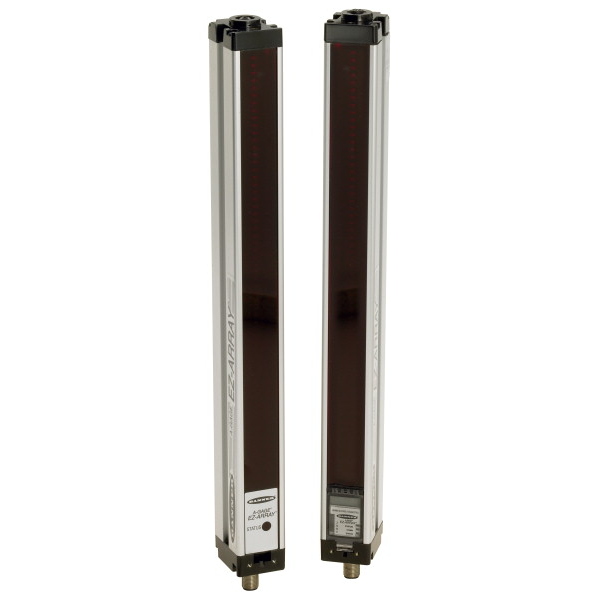

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Receiver: 1800 mm (70.9 in.) Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc Outputs: 2 Solid-State NPN 2 Analog 4-20 mA EIA-485 Euro 8-pin Quick-Disconnect; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Min Temp (°C) : -40; Number of Beams : 360; Housing Length (mm) : 1878; Analog Output : Current (4-20 mA); Emitter/Receiver Range (m) : 0.4 - 4; Max Relative Humidity : 95%; Minimum Object Sensitivity (mm) : 5-10

Typ

EZ-Array
