EA5R150PIXMODSRLCQ BANNER

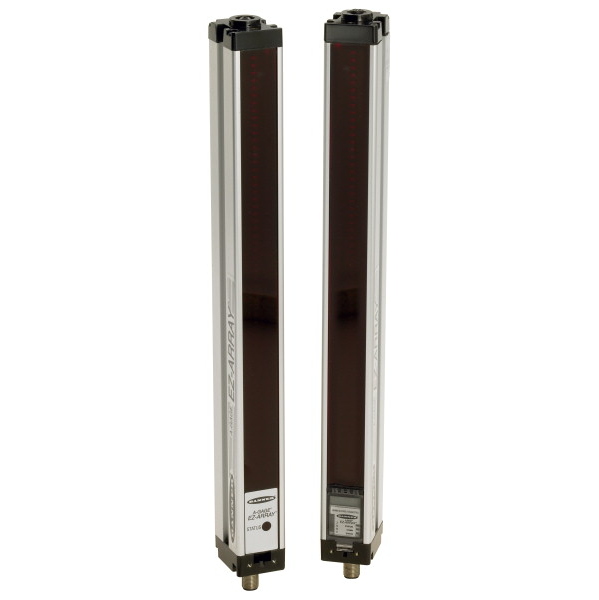

EZ-Array Series Measuring Light Curtain; EA5R150PIXMODSRLCQ; Low Contrast : Yes; Short Range : Yes; Sensing Mode (Detailed) : Receiver; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Number of Beams : 30; Min Temp (°C) : -40; Housing Length (mm) : 227; Max Temp (°C) : 70; Discrete Output : PNP; Analog Output : Current (4-20 mA); Emitter/Receiver Range (m) : 0.3 - 1.5; Max Relative Humidity : 95%; Power Supply : 12-30 V dc; Minimum Object Sensitivity (mm) : 5-10
- Typ
- EZ-Array
Die Überreste in der Kategorie EZ-Array ⍾ Seite 1
-
EA5R1200NUXMODSRQ
EZ-Array Series Measuring Light Curtain; EZ-ARRAY Short Range Receiver:1200 mm Range 30-1500 mm; Input 12-30 V dc Output 2 NPN Discrete; Output 2 0 -10 V Analog; EIA-485 Euro 8-pin …
-
EA5E150Q
EZ-Array Series Measuring Light Curtain; EA5E150Q EZ-ARRAY 5mm OPTICAL SPACING X 150mm EMITTER; Sensing Mode (Detailed) : Emitter; Device Type : Two-Piece; Primary Housing Material …
-
EA5E450Q
EZ-Array Series Measuring Light Curtain; EA5E450Q EZ-ARRAY 5mm OPTICAL SPACING X 450mm EMITTER; Sensing Mode (Detailed) : Emitter; Device Type : Two-Piece; Primary Housing Material …
