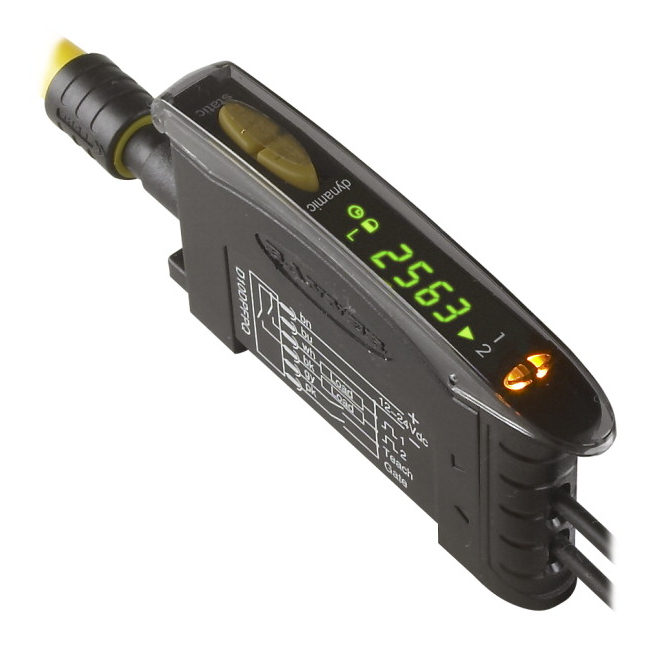

D10DPFPQ BANNER ⍾ 62383

Lichtleiter-Verstärker: Bauform D10; D10 Expert: Red Beam Plastic Fiber Range: depends on the fiber; Input: 12-24 V dc Output: 2 PNP Quick Disconnect Connector; Power : DC; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Fiber Type : Plastic and Glass; Connection : Integral QD; Quick Disconnect Type : M8 (Pico); Output Type (Specific) : Dual Discrete; Repeatability (µs) : 25 to 100; Number of Pins : 6; IP Rating : IP50; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Special Feature: Remote Teach : Yes; Crosstalk Avoidance : Yes; Adjustments : Teach Button; Delay at Power-up (ms) : 1000; Indicator Display Type : Single Digital Display; Minimum response time (ms) : .05; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes; Housing Material : Thermoplastic; EPLAN Cabinet Installable : Yes

Typ

D10

Connection

Integral QD

Typische Reaktionszeit

1000 ms

Stromversorgung

12-24 V dc

Stromversorgungstyp

DC

Schutzart

IP50
